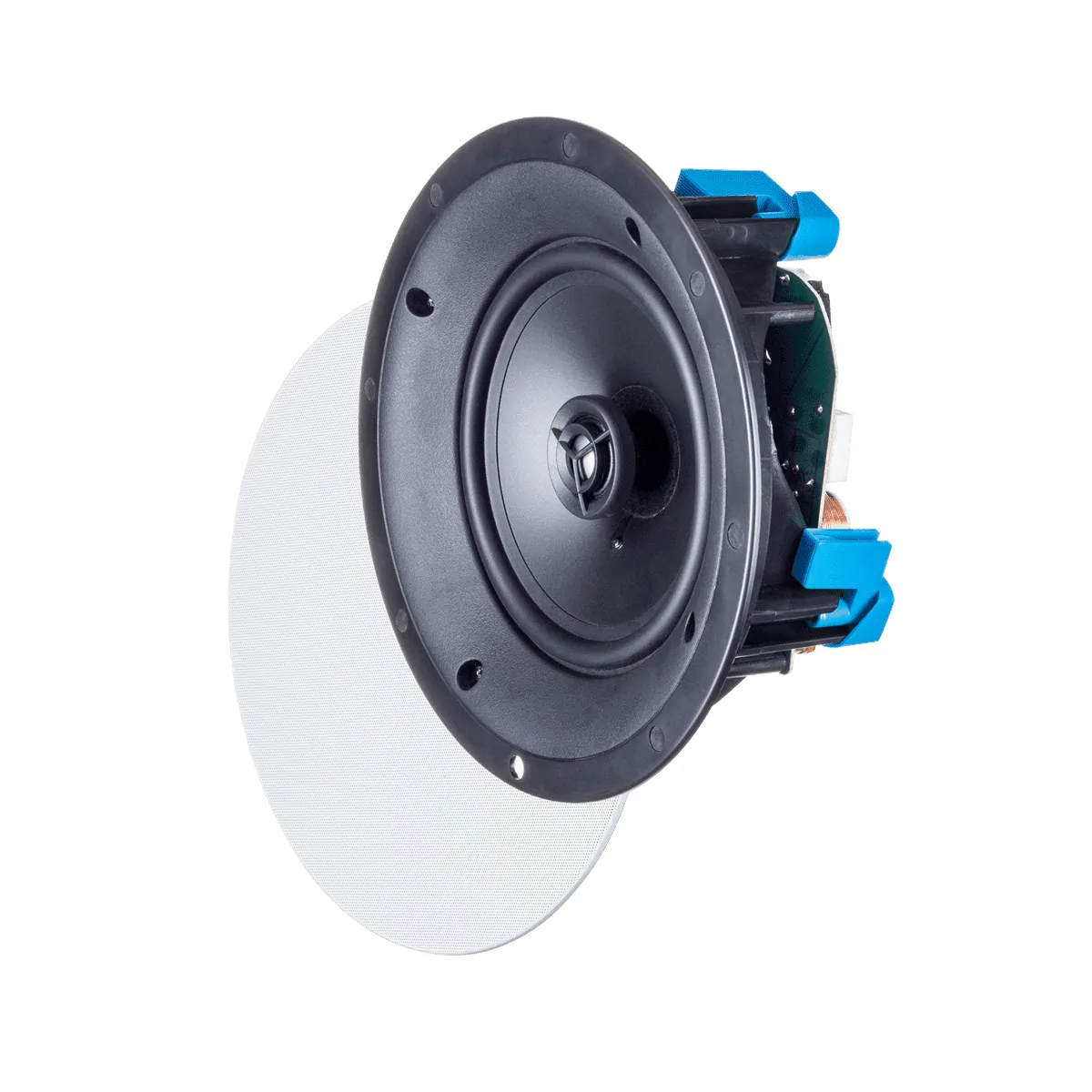

PARADIGM CI HOME H65-R
Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
Features
Pure-Titanium Tweeter (PTDTM) Domes: Ferro- uid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Superior Mineral- lled Polypropylene Bass/ Midrange Cones: oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.
Rigid ABS clamps simplify and reduce installation time. Pocketed screw holes help to hold the drill steady, making installation a snap.
Magnetically attached grilles: neodymium magnets hold grilles rmly in place.
Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
SPECIFICATIONS
| Design | 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps |
| Frequency Response ON-AXIS | ± 2 dB from 70 Hz – 20 kHz |
| High Frequency Driver | 3/4″ (1.9cm) PTD™ dome |
| MID/BASS Frequency Driver | 6.5″ (16.5cm) mineral-filled polypropylene cone |
| Sensitivity Room/ Anechoic | 89 dB / 85 dB |
| Impedance | Compatible with 8 ohms |
| Finishes | White, paintable grille |
| Weight | 1.6 kg |
| Low Frequency Extention | 55 Hz |
| Crossover | 2nd-order electro-acoustic at 3.0 kHz |
| Frequency Response 30° OFF-AXIS | ± 2 dB from 70 Hz – 18 kHz |
| Suitable Amplifier Power Range | 15-80 W |
| Maximun Input Power | 50 W |
| Overall Dimentions | 8.75″ (22.2cm) Diameter 3.625″ (9.2cm) Depth |
| Cut Out Dimensions | 7.75″ (19.7cm) Diameter |
| Minimum Mounting Depth | 3″ (7.6cm) |
