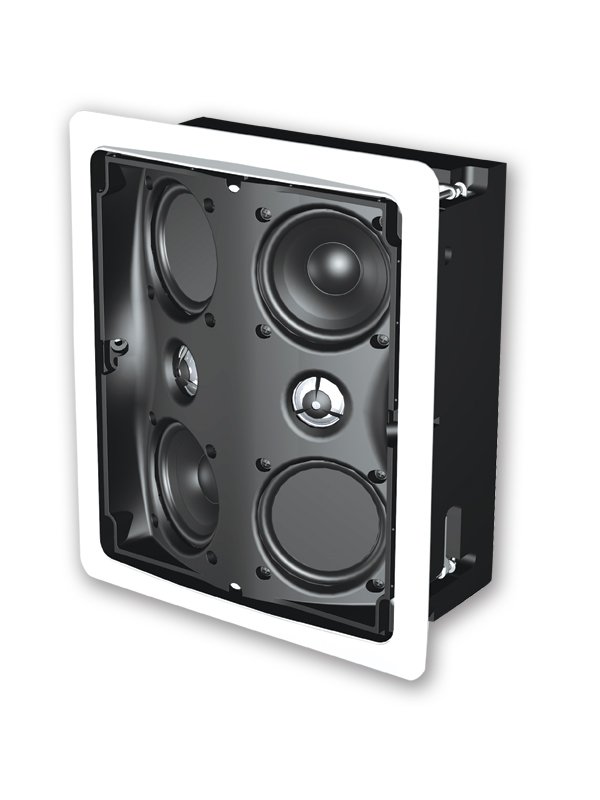

Definitive Technology UIW RSS III Speaker (Piece)

UIW RSS III

• Bipolar arrays evenly disperse sound effects over a broad area
• Dual 1″ pure aluminum dome tweeters produce pristine highs
• High dynamic impact with a pair of 3.5″ cast basket drivers and two 3.5″ pressure-coupled Low Bass radiators
• Integrated dense wood enclosures provide easy installation and consistent high performance

In-Ceiling Or In-Wall, They’re Incredible
The Definitive Technology Architectural Speaker line delivers high performance sound while remaining practically invisible. Intended for use in custom home theaters of the highest quality, UIW RSS III speakers feature non-resonant medite cabinets, producing the tightest bass, clearest midrange and an ideal combination of direct and ambient sound. The result is uniquely immersive surround performance that completely envelops listeners in an expansive, 360-degree sound stage.

Key Features
Bipolar Surround Experience
Sound engulfs you anywhere in the room with dual 3-way full-range systems in each speaker–a total of 6 driver/radiators per unit.

Pure Aluminum
Smooth, high frequency response rings true from the pure aluminum dome tweeter set among high definition bass drivers with cast baskets.

Greater Degrees of Sound Control
For in-ceiling installations, the RSS III’s rotating 90-degree driver arrays give you the freedom to optimize performance in relation to your room and seating arrangement.

Non-Resonant Sealed Medite
Enclosed in dense wood medite cabinets that eliminate vibrations and buzzing, the UIW RSS III reveals natural, uncolored midrange and tight, detailed bass.

Simple Stealth Installation
With a flush mount design and rotating dogleg clamps that provide secure, non-resonant mounting, the UIW RSS III is easily installed in both new and existing construction applications.

OVERALL
Total Pieces: 1

ACCESSORIES
Included Accessories
(1) Wall Mounting Template
(1) Paint Mask
(1) Paintable Grille
(1) Self Adhering Foam Gasket

SHIPPING CARTONS
Carton 1: 13.5″ (34.29 cm) h x 13.5″ (34.29 cm) w x 7.25″ (18.42 cm) d – 9 lbs (4.08 kg)

IN-WALL SPEAKER
Qty Included: 1
Driver Complement
(2) 1″ (2.54 cm) d (Round) – Tweeter
(2) 3.5″ (8.89 cm) d (Round) – Mid/Woofer
(2) 3.5″ (8.89 cm) d (Round) – Bass Radiator
Grille Dimensions: 11″ (27.94 cm) h x 9.44″ (23.98 cm) w

IN-WALL MOUNT
Shape: Rectangle
Dimensions: 9.88″ (25.1 cm) h x 8.31″ (21.11 cm) w

IN-CEILING MOUNT
Shape: Rectangle
Dimensions: 9.88″ (25.1 cm) h x 8.31″ (21.11 cm) w

INPUTS
Audio Inputs
Speaker Inputs: (1) Pair of Heavy Duty, Spring Loaded

AUDIO QUALITY
Total Frequency Response: 40 Hz ? 30,000 Hz
Nominal Impedance Range: 8 ohms ? 4 ohms
Max Sensitivity (1 watt @ 1 meter): 92 dB

CROSSOVER
A/V Receiver Crossover Settings: Small (120 Hz)

EXTERNAL AMPLIFIER
Recommended Amplifier Power Per Channel: 10 watts ? 300 watts
