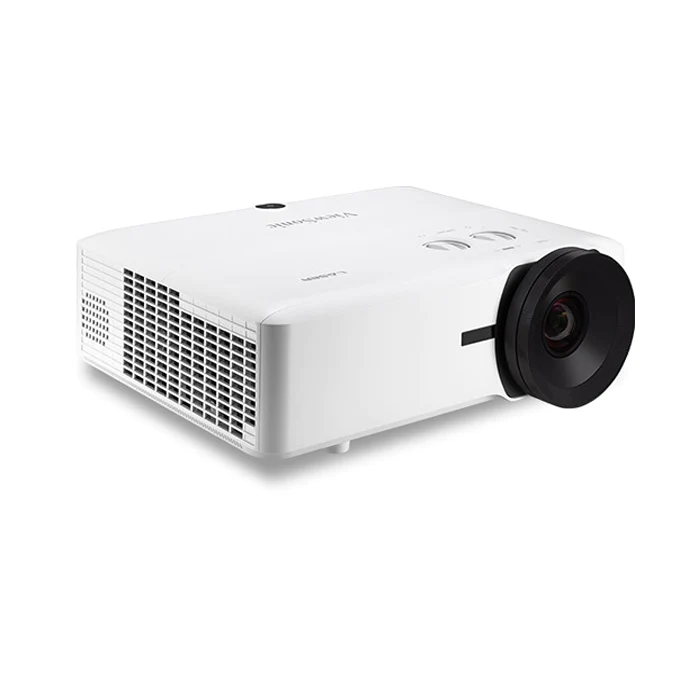

VIEWSONIC – LS860WU 5,000 ANSI Lumens WUXGA Installation Projector

ViewSonic’s LS860WU is an advanced 5,000 ANSI Lumens WUXGA short throw installation projector. Adopting 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection and portrait mode together allow for amazing flexibility. Combined with its compact size and built-in HDBaseT, this flexibility helps to create an overwhelmingly immersive experience for blending projection applications in simulation/experience centers, restaurants and gyms, ensuring the cost-effectiveness desired.

• Native Resolution: 1920×1200
  DMD Type: DC3
  Brightness: 5000 ANSI Lumens
  Contrast Ratio: 3000000:1
  Display Colour: 1.07 Billion Colours
  Light Source Type: Laser Phosphor system
  Light Source Life (Normal): up to 20000
  Lamp Watt: Nichia 67W x2
  Lens: F=1.83-1.86, f=9.6-9.4mm
  Throw Ratio: 0.81-0.89
  Optical Zoom: 1.1X
  Digital Zoom: 0.8x-2.0x
  Image Size: 60″-200″
  Throw Distance: 1.04-3.83m
  (100″@1.74m)
  Keystone: H:+/-40° , V:+/-40°
  Lens Shift V. Range: Yes (+50%, -50%)
  Lens Shift H. Range: Yes (+23%, -23%)
  Audible Noise (Normal): 38dB (TBD)
  Audible Noise (Eco): 31dB (TBD)
  Input Lag: 16ms
  Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Video Compatibility: NTSC, PAL, SECAM
  Horizontal Frequency: 15K-102KHz
  Vertical Scan Rate: 23-120Hz
• INPUTComputer in (share with component): 1
  Composite: 1
  S-Video: 1
  HDMI: 2
  (HDMI 1.4a/HDCP1.4 x2)
  Audio-in (3.5mm): 1
  Audio-in (RCA R/L): 1
  3D VESA (Sync): 1
  HDBaseT: 1
  RJ45 Input: 1
  (LAN control)
• OUTPUTMonitor out: 1
  Audio out (3.5mm): 1
  Speaker: 10W x2
  USB Type A (Power): 1 (5V/ 1.5A)
  (share with service)
  12V Trigger (3.5mm): 1 (3.5mm)
