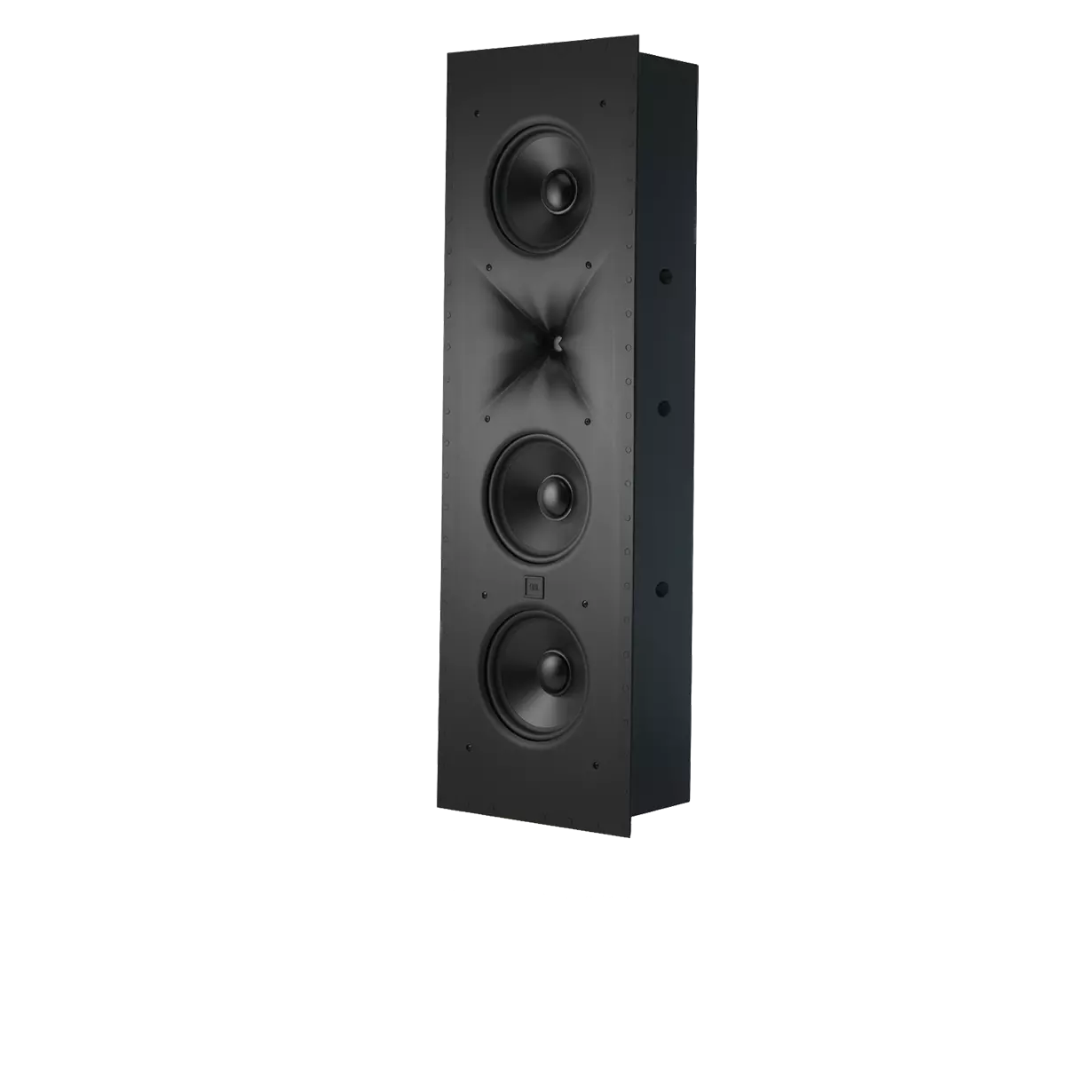

JBL SCL-2

Features
• 2-1/2-way triple 8-inch/200mm driver confi guration –
ideal for wall mount
• 5.9-inch/150mm deep, rectangular footprint enclosure
• Can be mounted vertically or horizontally for maximum
application fl exibility and performance
• Computer-optimized HDI Constant Directivity Horn with
very smooth and predictable off-axis behavior over a wide
coverage area
• D2415K, 1.5-inch/37.9mm annular ring Teonex® diaphragm
compression driver with advanced HDI geometry horn
• Powerful cast-frame, Advanced Aluminum Matrix cone
woofers with low-distortion neodymium motor structures
• Sonoglass® baffl e with integrated HDI waveguide for
maximum strength and high internal damping
• Solid enclosure made of solid MDF enclosure installs
behind drywall and provides optimized acoustic
performance and enhanced acoustic isolation from the wall
• Rubber isolation mounts attach cabinet to wall studs,
making for a fi rm yet isolated mounting
• Network is Bi-Wire and Bi-Amp capable using gold-plated
binding posts on rear enclosure and an easy Molex®
baffl e to network connection
• Zero-bezel, magnetically-attached grille can be painted to
match décor
Specifi cations
Speaker type 2-1/2-way in-wall loudspeaker
Low frequency transducer Three 8″ (200mm) cast-frame,
Advanced Aluminum Matrix cone
woofers
Mid/High frequency transducer D2415K, 1.5″ (38mm), dual
annular ring Teonex® diaphragm
compression driver mounted to
Sonoglass® horn/baffl e
Maximum recommended power 445 Watts RMS (CEA-426B
specifi cation, calculated onto the
SCL-2 rated load impedance)
Frequency response (-6dB on-axis)
Coverage area (-6dB @ 20kHz)
Coverage area (-6dB @ 10kHz)
57Hz – 25kHz
80 x 70 degrees (Hor x Vert)
100 x 100 degrees (Hor x Vert)
Sensitivity (2.83V @ 1m) 92dB
Nominal impedance 6 Ohm
Crossover frequencies 225Hz, 1.3kHz
Enclosure type Sealed in-wall mount with
included back box
Inputs Dual gold-plated binding posts
Finished grille dimensions (H x W) 40.2″ x 12.8″ (1021mm x 326mm)
Cutout dimensions with back box (H x W) 38.25″ x 11.5″ (972mm x 292mm)
Mounting depth with back box 5.8″ (147mm)
Weight 53.5 lb (24.3kg)
Finishes Matte black with paintable
white grille
