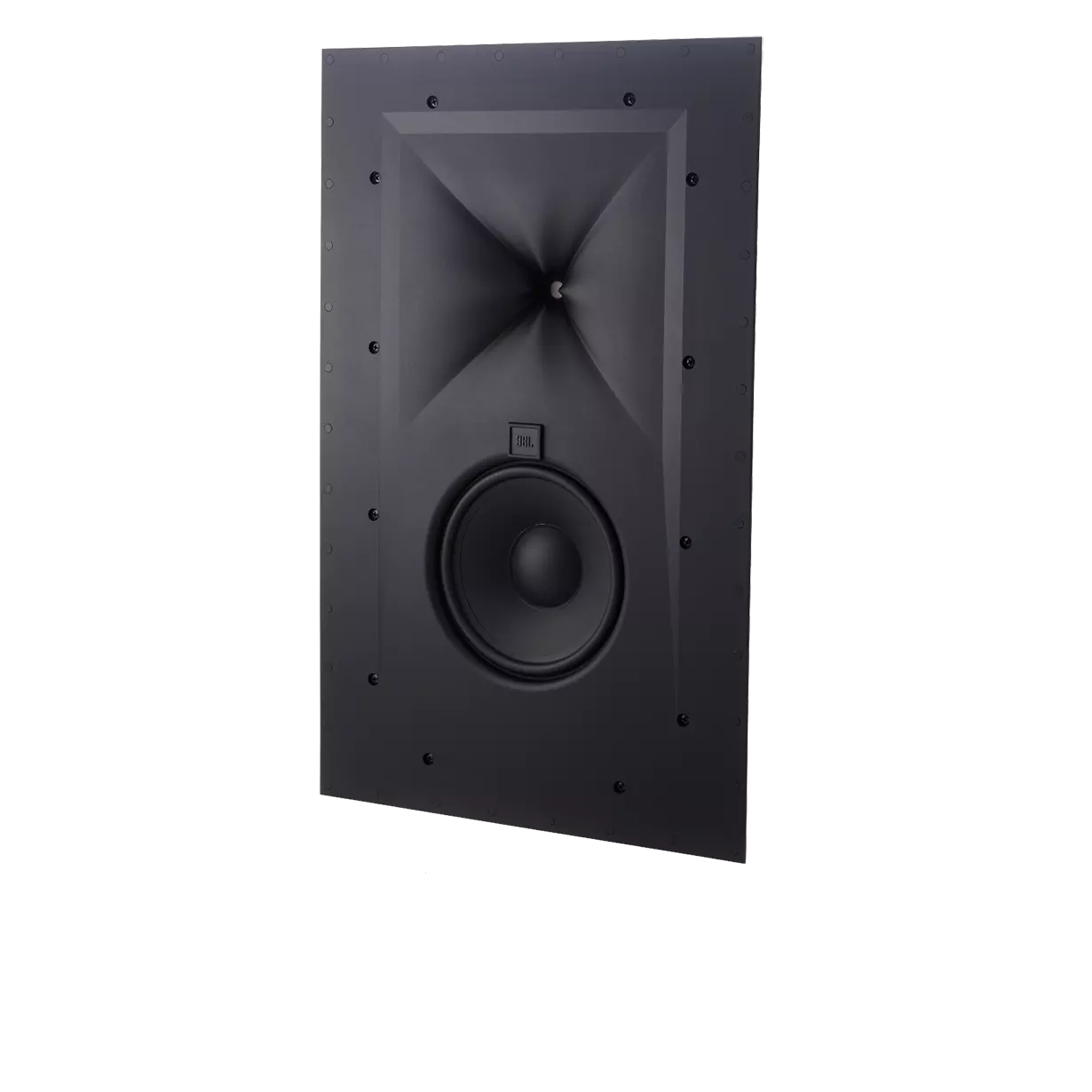

JBL SCL-4 In-Wall/In-Ceiling Loudspeaker

Features
• Two-way 7-inch / 180mm driver configuration – a direct drop-in replacement for the S4Ai
footprint
• 3.8-inch / 96.5mm deep enclosure fits standard 2 x 4 walls. The self-contained baffle
system can alternatively be mounted without the rear enclosure for restricted depth
applications
• Can be mounted in any orientation for maximum application flexibility and performance
• Computer Optimized HDI Constant Directivity Horn with very smooth and predictable offaxis behavior over a wide coverage area
• 2409H, 1-inch / 25mm annular ring Teonex® diaphragm compression driver with
advanced HDI geometry horn
• Powerful cast-frame, Advanced Aluminum Matrix cone woofer with low-distortion Ferrite
motor structure
• Solid, wood enclosure installs behind drywall and provides optimized acoustic performance
• Network is Bi-Wire and Bi-Amp capable using gold plated 5-way binding posts used on
rear enclosure and baffle network assembly
• Zero-bezel, magnetically-attached grille can be painted to match decor
Specifications
Speaker type: 2-way in-wall/in-ceiling
loudspeaker
Low frequency transducer: 7″ (180mm) castframe, Advanced Aluminum Matrix cone woofer
Mid/High frequency transducer: D2-derived
2409H, 1″ (25mm), annular ring Teonex®
diaphragm compression driver
Maximum recommended amplifier power:
300 watts RMS
Frequency response (-6dB on-axis):
45Hz – 33kHz
Coverage area (-6dB@20kHz): 100 x 100
Degrees (Hor x Vert)
Coverage area (-6dB@10kHz): 120 x 120
Degrees (Hor x Vert)
Sensitivity (2.83V@1m): 91dB
Nominal impedance: 6 Ohm
Crossover frequencies: 1.3kHz
Enclosure type: Sealed in-wall mount with
included back box
Inputs: Dual gold-plated five-way binding posts
Finished grille dimensions (H x W):
25.35″ x 16.45″ (644mm x 418mm)
Cutout dimensions with backbox (H x W):
23.93″ x 14.2″ (608mm x 360mm)
Mounting depth with backbox: 3.84″ (97.6mm)
Weight: 27.6 lb (12.51kg)
Finishes: Matte Black with white paintable grille
